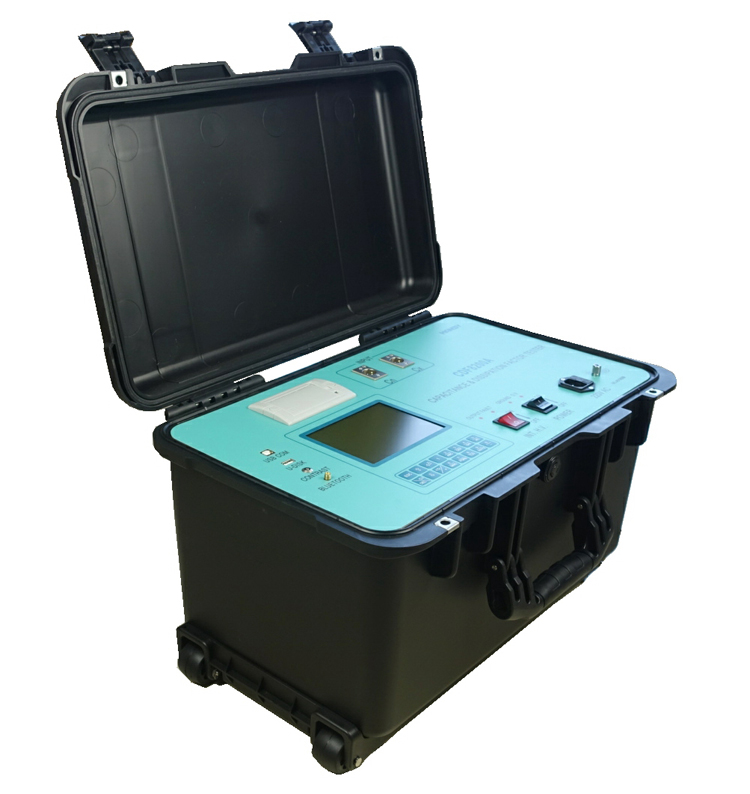

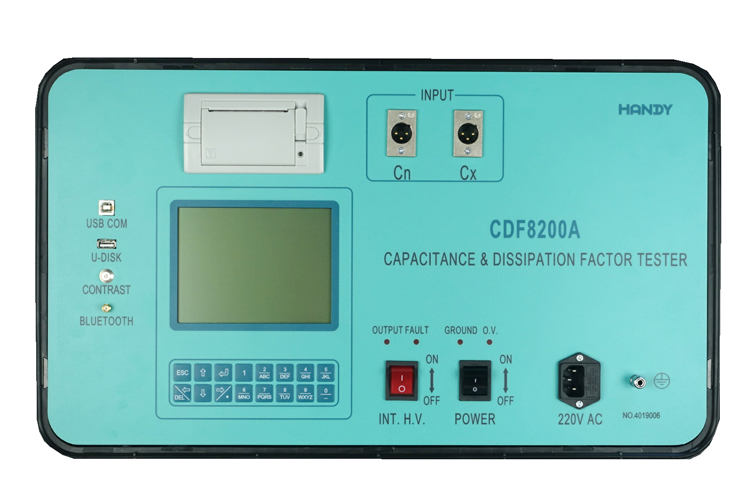

CDF8200A Capacitance & Dissipation Factor Tester
CDF8200A Capacitance and Dissipation Factor (Tan Delta) tester is used for measuring transformer, instrument transformer, transformer bushing, capacitor, insulating oil and so on electrical equipments’ dissipation factor and capacitance measurement.
Description
Using variable frequency method and digital filtering technical to eliminate the power frequency interference which can measure the dissipation factor and capacitance accuracy.
Built-in high voltage standard capacitor and high voltage frequency converter.
Two ways for cable connection, used for ungrounded of grounded test objects.
Can use external high voltage power supply and standard capacitor for testing.
Automatically finished boosting, measurement, step down and calculate work.
Monitor voltage output, keep the output voltage stably.
100 test results can be saved in internal memory.
Using USB flash disk to transfer data and software update.
Built-in thermal printer to print test result.
Built-in blue tooth connect to a tablet PC. Operate the tester via wireless internet. Improve security.
Voltage output range： 100 - 10000V AC
Max current output： 0 - 200mA AC
Accuracy of voltage output：±1%U
Output frequency: 45 – 65Hz
tgδ range：0 - 0.1
tgδ accuracy：±1% rdg ±0.0004
tgδ resolution：0.0001
Capacitance range：
When Internal 10KV：3pF - 60000pF
When internal 500V：60pF - 1.2μF
When external 10KV：3pF - 1.5μF
When external 500V：60pF - 30μF
Capacitance accuracy：± 1% rdg ± 1pF
Capacitance resolution：0.1pF
Testing current range：10μA - 5A AC
CVT measurement output: 3 – 50V AC, 3- 30A AC
Power supply： 198 - 264V AC， 47- 63Hz
Working environment: -20°C to 50°C
Humidity ≤90%RH Non-condensing
Dimensions: 558×357×300mm Weight: 29kg
